Summary

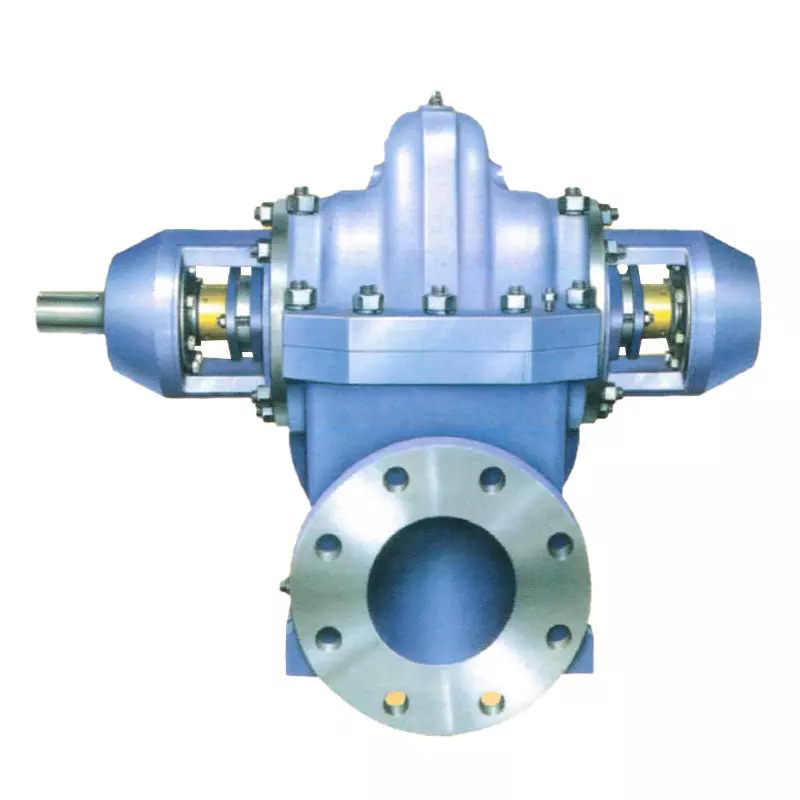

Compared with other similar pumps, Model - $ horizontal axially split pumpof pump INDUSTRY is featuredwith long life, high effciency, reasonable structure, low operating cost, convenient installation and repair, etc. lt is anideal pump for fire fighting, air-conditioning, chemical, water treatment and other industries.

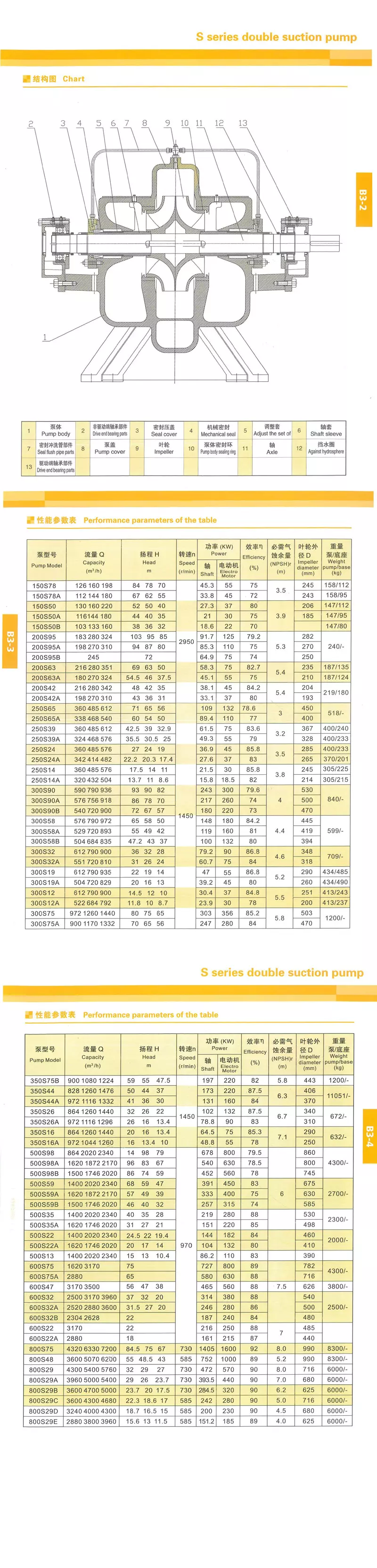

Pump body
The designed pressures of the pump are 1.6Mpa and 2.0 Mpa. In order to meet different users' reguirements around theworld, the relevant inlet and oullet flages of pump body can be chosen according to ANSl, PN and JlS standards. Theseinletand outlet flanges are allinstalled in the lower part of pump body, so the rotor can be taken out without disassemb.ling pipelines of the system, and it is convenient to repair, Part of the pump body adopts a double - flow- passage stru-cture in design, which can lower the radial force and extend the life of the mechanic seal and the bearing.

Blade wheel

The hydraulic design of the blade wheel uses the up-to-date CFD technology, which can improve the hydraulic efficiencyof the pump. The blade wheel has been made in a dynamic balance, so as to make sure that model-S pump canrun very smoothly.ShaftThe diameter of the shaft is big, while the gap between bearings is short. This can lower the deflection of the shaft, soas to extend the life of the mechanic seal and the bearing.

Shaft casing

For model-S pumps, the shaf casing can be made of many diferent materials, so as to protect the shaft from corrosion and abrasion.The shaft casing can be replaced.

Abrasion ring

A replaceable abrasion ring is installed between the pump body and blade wheel, so as to protect the pump body andblade wheel from abrasion. lt is convenient to replace, This results in low maintenance cost, guarantees enough runn.ing gap and high efficiency.

Stuffing

The pump with unique stuffing design can use not only stuffing, but also mechanic seal. The seal device can be replac.ed without disassembling pump cover.

Bearing

The unique bearing design makes it possible that the bearing can use either grease or thin oil for lubrication. The des.igned life ofthe bearing can be up to more than 100,000 hours. A double - row thrust bearing or closed -type bearingcan also beused.

Materials

According to actual demands of users, the materials ofmodel-S horizontal medium - open pump can be copper,cast iron, nodular cast iron, 316 stainless steel,416 stainless steel, duplex steel. Hastelloy, monel mental, Titaniumalloy,20#alloy,etc.

Installment modeModel - S pump can be installed in two ways: horizontal and vertical installments. The vertical installment can save flo-or space.
