Summary

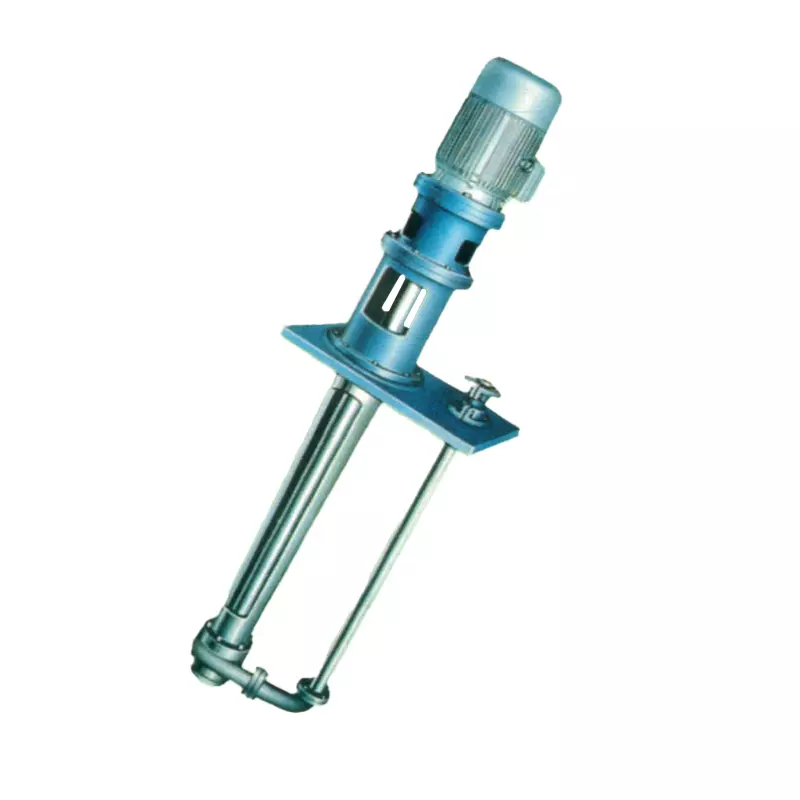

Model LJYA series slurry pump is a cantilever type single - stage - suction centrifugal submerged pump. lts blade wheel is a semi-open type. in the front and back of the blade wheel installs an abrasio - resistant cover, The pump is widelyused in chemical process for conveying medium containing less than 30% solid granules and with viscosity less than200cp, which is subject to the interaction of corrosion and abrasion. lt is especially suitable for conveying such mediumas phosphoric acid, triammonium phosphorate slurry, etc. In general, the temperature of the conveying medium is lessthan 110'℃. When conveying medium with higher temperature, the bearing should be cooled with cooling water, Perfo.rmance scope:flow Q=10-400myh, Lift H=5-50m.

The FLX type series anticipates the syrup circulates to pump to 3~1000000/year in ton phosphorus ammonium engin.eering in side of an effect two effects anticipates syrup evaporate concentrated circulate of important kit Equipmentsshould pump to have eficient and high, vapor eclipse function good etc, Characteristics is Replace the optimizationproduct that import the equipments. That series pump is extensive at the same time should use for the other industry inchemical engineering,petroleum,metallurgy, deckle...Etc. Section.
