General

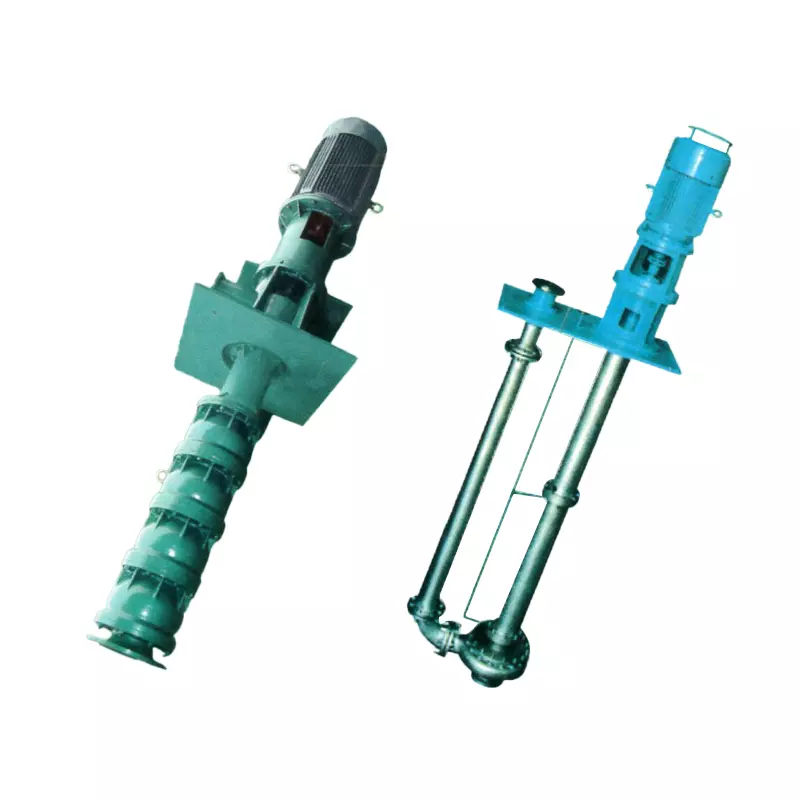

Model FCDl vertical long shaft pump series adopts submerged blade wheel and vertical installation structure. lt hasmerits of compact structure, stable running, easy operation, convenient maintenance, small ground space, high degr.ee of versatility and standardizalion, lt is an up-o-date malure product series researched and developed by our comp.any on the basis of absorption of advanced experiences on design and manufacture of vertical long shaft in the devel.oped countries with accommodation to the domestic market requirements.The product has many applications including industrial water supply and drainage, tap water of city, living water andfire-fighting water, water pumping from river, lake and sea. lt is used in industries of metallurgical, mine, chemical, pa.permaking,water powerstation,etc.

Meaning of model code
1-Qutlet port diameter of pump(40-700).Unit:mm2-Code forFCDLvertical long shaft pump series.3-Stage number of blade wheel(it can be omitted when stage number of blade wheel is 1).4-Nominal total lift of pump. Unit:m.
5-Code of cutting blade wheel.Shown as A.B.
6-Pump middle pipe number N (0,1,2- it can be omitted when middle pipe number is 1).

Among them, 1,2,3,4,5 are the basic model code of pump. 6 must be declared when the user is placing his order.
Vertical long shaft pump with outlet port diameter of 350mm, 2-stage blade wheel, total lift of 60 m, and one time cuting.
